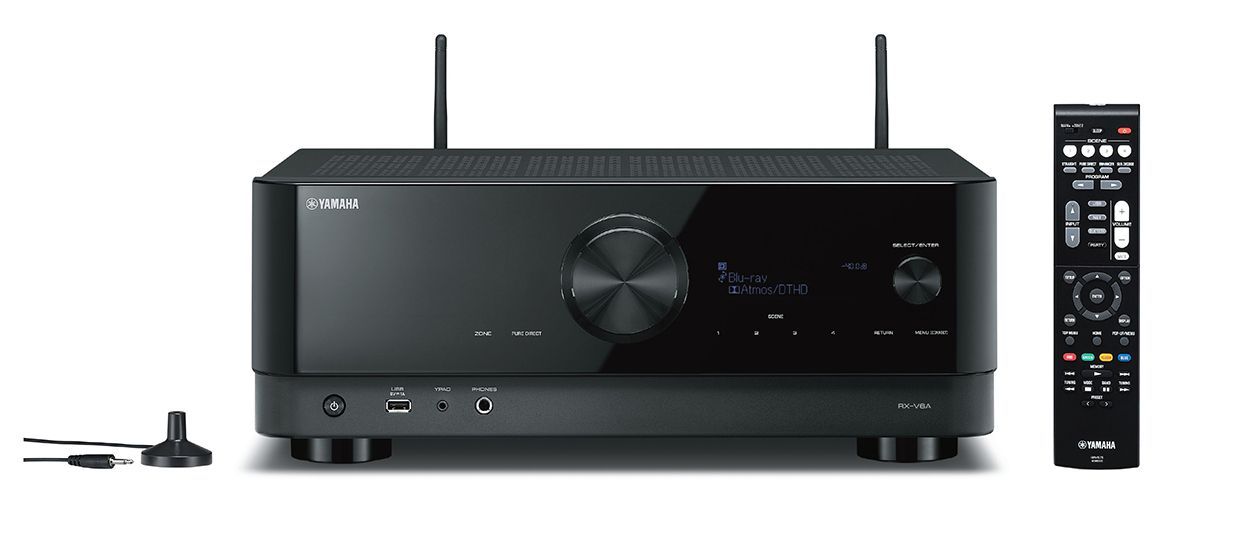

Yamaha RX-V6A

Amplifier

Channel

7.2

Rated Power (8 ohms, 20hz-20kHz, 0.06 THD)

100W

Speaker Terminals

9

Inputs / Outputs

HDMI In

7

HDMI Out

1

HDMI 2.1 Compatible Inputs

3

4K Support

4K@60Hz / 4k@120Hz

8K Support

8K@60Hz

Video Upscailing

Upto 4K

HDR Support

HDR10/HDR10+/Dolby Vision/HLG

HDMI 2.1 Features

VRR/QMS/ALLM/EARC

Digital Optical

1

Digital Coax

1

Analogue

3 (Inc. Phono)

XLR

No

Wi-Fi/Ethernet

Yes (2.4Ghz/5Ghz)

Bluetooth

Yes

Airplay 2

Yes

USB

Yes

Pre-out

2.2 (Mono Subwoofer)

Phono

Yes

Audio Features

Sound Format

Dolby ATMOS/DTS:X

Dolby ATMOS Height Virtualization

Yes

DAC

BurrBrown PCM5102A

Pure Direct

Yes

Surround: AI

-

Powered Multi-Zone

Zone 2 (Analogue + Network Sources)

Network

MusicCast Multi-room

Yes

Wireless Surrounds Compatible

Yes

Airplay 2

Yes

Steaming Service

Spotify/Tidal/Deezer/Amazon Music/Net Radio

Voice Control Service

Amazon Alexa/Google Assistant

Network Control Protocol

YXC (MC Control)

3rd Party Control (With Drivers)

Control 4/RTI/ELAN

Other

OSD/GUI

OSD (Overlay)

Video Upconversion (Analog to HDMI)

-

YPAO Automatic Calibration

Yes (R.S.C/Multi)

Radio Tuner

DAB+/FM

Dimensions

W x H x D (mm)

435 x 171 x 377

Weight (kg)

9.8
