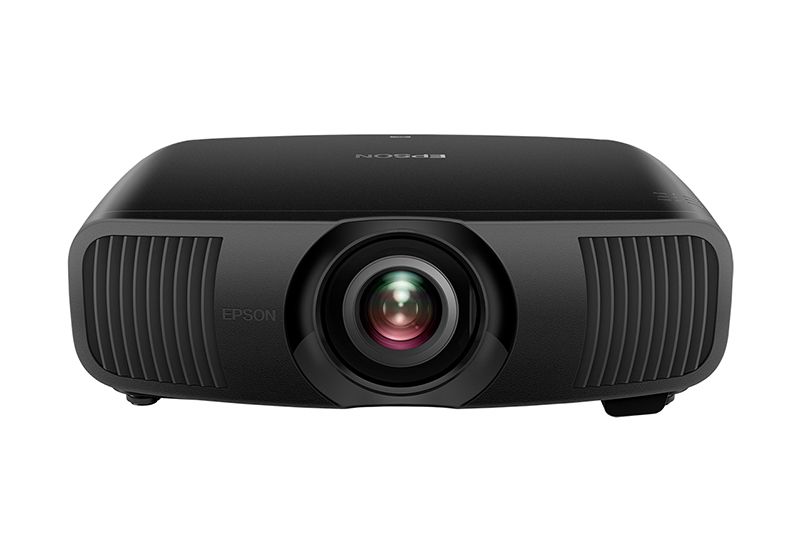

Epson LS-9000B
- Stunning picture quality – 4K display technology1 with HDR10 produces a full 8.3 million pixels on-screen for an exceptionally clear 4K UHD experience
- Immersive big screen entertainment – up to 2,200 lumens of colour and white brightness2 produce an immersive picture up to 300" to fill up your entertainment space
- Exceptional colour brightness – unique 3LCD technology uses three individual LCD chips to continuously display 100% of the RGB colour signal for every frame
- Powerful picture processing – a 32-bit picture processor handles real-time colour, contrast, frame interpolation and dynamic tone mapping to faithfully reproduce content with exceptional picture detail and black contrast
- Virtually maintenance-free – 20,000-hour solid-state laser light source3 with an advanced vapour-cooled thermal transfer design provides instant power-on with no bulbs to be replaced
- Flexible placement – making installation simple, you can precisely shift the lens up to ± 24% horizontally and up to ± 96% vertically without any loss in picture distortion or clarity. You can also set the zoom and focus, then store all the settings in one of ten lens memory presets
- Dedicated HDR10+ processor – full 10-bit HDR colour processing accepts 100% of the HDR source information to faithfully reproduce HDR, HDR10+ and HLG (hybrid log gamma) content for an exceptional visual performance
- Smart home control – easily integrates into home automation and remote monitoring systems, including Control4® and Crestron® control systems
- 3 year projector warranty – enjoy peace of mind with 3 year projector warranty and optional 2 year extended warranty
| PRODUCT NAME |
EH-LS9000B NEW |
|
| WHAT'S IN THE BOX |
||
| EH-TW9400 projector, 3 m power cable, remote control, 2 x AA batteries, user guide |
EH-LS9000B projector, 3 m power cable, remote control, 2 x AA batteries, user guide |
|
| TECHNOLOGY |
||
| Projection system |
3LCD |
3LCD |
| LCD panel |
0.74-inch panel |
0.74-inch panel |
| Light source |
Lamp |
Laser diode |
| IMAGE |
||
| Colour light output |
2,600 lm |
2,200 lm |
| White light output |
2,600 lm |
2,200 lm |
| On-screen resolution |
4K* (4 M pixels on screen) |
4K* (8.3 M pixels on screen) |
| Native resolution |
1080p |
1080p |
| Native aspect ratio |
16:9 |
16:9 |
| Contrast ratio |
120,000:1 |
2,500,000:1 |
| Native contrast ratio |
10,000:1 |
1,800:1 |
| Colour reproduction |
Up to 1.07 billion colours |
Up to 1.07 billion colours |
| Colour processing |
10 bit |
10 bit |
| Keystone correction |
Vertical: -30 to +30 degrees |
Vertical: -30 to +30 degrees |
| NA |
Horizontal: -30 to +30 degrees |
|
| Point correction |
NA |
Yes |
| Quick corner |
NA |
Yes |
| Lens shift (powered) |
Yes |
Yes |
| Vertical: ±96.3% |
Vertical: ±96.3% |
|
| Horizontal: ±47.1% |
Horizontal: ±24% |
|
| Zoom ratio |
1 - 2.1 (Optical) |
1 - 2.1 (Optical) |
| Screen size |
50" to 300" [148 cm to 908 cm] |
50" to 300" [148 cm to 908 cm] |
| Projection distance |
100" screen – 3.0 – 6.3 m |
100" screen – 3.0 – 6.3 m |
| Throw ratio |
1.35 - 2.84 |
1.35 - 2.84 |
| Lens F number |
2.0 – 3.0 |
2.0 – 3.0 |
| Lens focal length |
22.5 mm - 46.7 mm |
22.5 mm - 46.7 mm |
| Focus method |
Powered |
Powered |
| Refresh rate |
192 Hz - 240 Hz |
384 Hz - 480 Hz |
| CONNECTIVITY |
||
| Input |
2 x HDMI (HDCP 2.2), 1 x D-sub 15 pin |
2 x HDMI (HDCP 2.3) (HDMI2 supports eARC / ARC) |
| Control |
1 x RS232c |
1 x RS232c |
| HDMI optical out |
Yes |
Yes |
| Network I/O |
1 x RJ45 |
1 x RJ45 |
| USB I/O |
1 x USB A |
1 x USB A** |
| Trigger out |
1 x stereo mini |
1 x stereo mini |
| Speaker |
NA |
NA |
| PRODUCT NAME |
EH-LS9000B NEW |
|
| ADVANCED FEATURES |
||
| 4K enhancement* |
Yes |
Yes (2 axis) |
| High dynamic range – HDR10+ |
Yes (HDR10 only) |
Yes |
| Hybrid log-gamma – HLG |
Yes |
Yes |
| Advanced image processing |
Yes |
Yes |
| Super resolution |
Yes |
Yes (4K compatible) |
| Frame interpolation |
Yes |
Yes (up to 4K 60fps) |
| Auto contrast enhancement |
NA |
Yes |
| Scene adaptive gamma |
NA |
Yes |
| AV mute |
Yes |
Yes |
| Direct power on |
Yes |
Yes |
| Security |
Kensington®-style lock provision |
Kensington ® -style lock provision |
| Colour modes |
Dynamic, Bright Cinema, Cinema, Natural, Digital Cinema, 3D Dynamic, 3D Cinema |
Dynamic, Bright Cinema, Cinema, Natural, Vivid |
| Lens position memory |
Yes (10 positions) |
Yes (10 positions) |
| Industry / partner standard |
Crestron Integrated Partner, Control4, AMX, PJLink |
Crestron Integrated Partner, Control4, AMX, PJLink |
| GENERAL |
||
| Dimensions D x W x H (projector inc feet) |
450 x 520 x 193 mm |
447 x 520 x 193 mm |
| Weight |
Approx. 11.2 kg |
Approx. 12.7 kg |
| Projector warranty |
3 years |
3 years |
| Power consumption: normal |
355 W |
302 W |
| Power consumption: standby |
2.0 W |
2.0 W |
| Noise level |
Normal: 31 dB |
Normal: 30 dB |
| Quiet: 20 dB |
Quiet: 22 dB |
|
