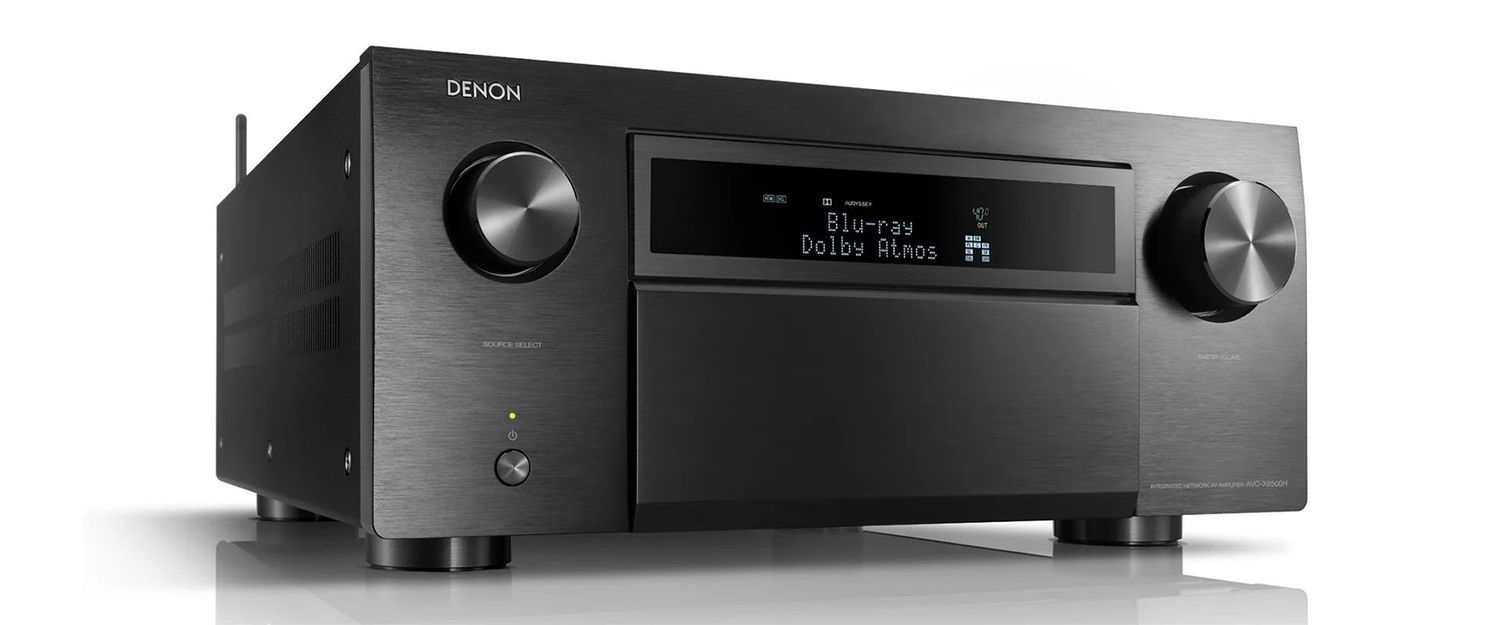

Denon AVCX8500

Technical Information

• Number of Power Amps 13
• Power Output 210 watts per channel (6 ohms, 1 kHz, THD: 1%, 1ch driven)
  • 190 watts per channel (6 ohms, 1 kHz, THD: 0.7%, 2ch driven)
  • 150 watts per channel (8 ohms, 20Hz-20kHz, THD: 0.05%, 2ch driven)
• Speaker Impedance 4-16Ω/ohms
• Frequency Response 10 Hz- 100 kHz - +1, -3 dB (Direct Mode)
• S/N Ratio 102 dB (IHF-A weighted, Direct mode)
• General
• Power Supply 230V/50/60Hz
• Power Consumption 900W (Standby 0.1W, CEC standby 0.5W)
• Power Consumption (No Sound)
  • 70W (ECO Mode On)
  • 125W (ECO Mode Off)
• Maximum Dimensions (WxDxH)
  • Antenna: Horizontal (mm) 434 x 482 X 195
  • Antenna: Vertical (mm) 434 x 482 X 259
  • w/o Antenna: (mm) 434 x 472 x 195
• Carton Dimensions (Packaging) (WxDxH) (in) 569 x 539 x 328
• Weight (kg) 23.3
• Weight (Packaging) (kg) 26.9
• In
  • HDMI (Front + 1) x7 + 1
  • 8K HDMI x1
  • Component (Video) x3
  • Composite x4
  • Phono x1
  • Analogue Audio x6
  • Digital Optical x2
  • Coaxial x2
• Out
  • HDMI Monitor (eARC) x3 (1 w/ eARC)
  • 8K HDMI x2
  • Component (Video) x1
  • Composite x2
  • Audio Pre-out (SW) 15.2 ch
